Product Details

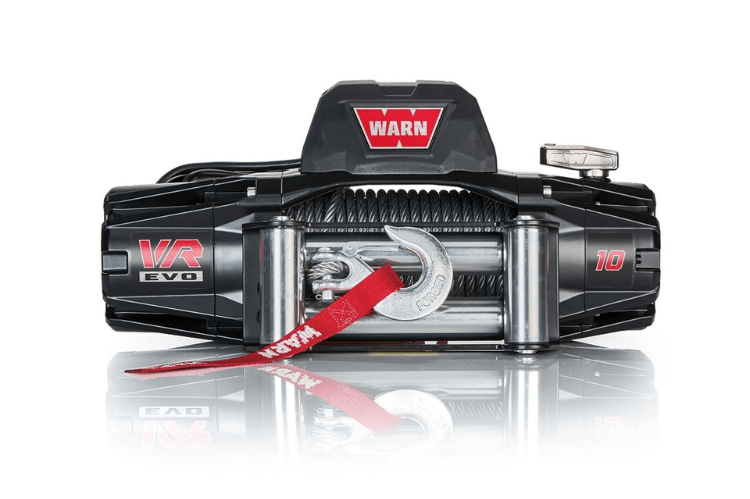

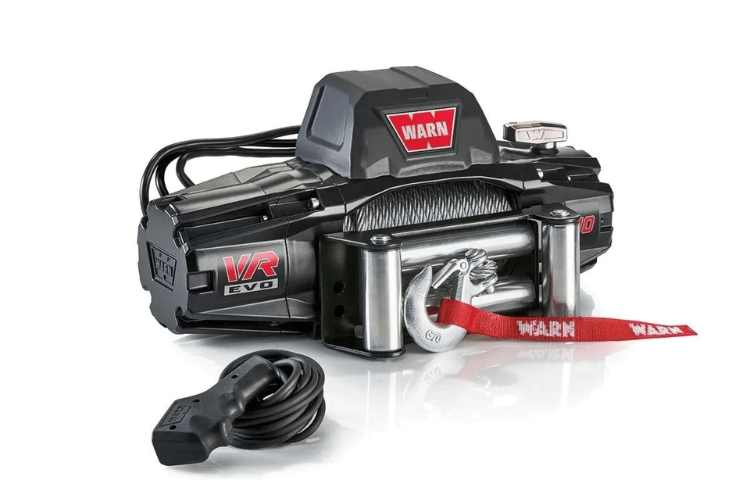

Warn VR EVO 10 Winch 103252
Features:
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
- IP68-rated waterproof winch construction keeps the elements out
- High-performance Albright contactor delivers maximum reliability
- Control packs can be relocated for low-profile installations
- Durable, one-piece cast-aluminum tie-plate for added strength and durability
- Corded remote with 11.5' (3.5m) lead
- Limited lifetime warranty for mechanical parts and 7 years on the electrical
Details:
- Type: Electric
- Recommended use: Vehicle Recovery
- Mounting type: Vehicle Mounted
- Voltage: 12 Volt DC
- Electrical control type: Albright Contactor
- Motor type: Series Wound
- Drive gear type: 3-Stage Planetary
- Gear reduction ratio: 218:1
- Free spooling: Yes
- Brake Type: Spring
- Line diameter: .354 Inch
- Length: 90 ft
- Line material: Steel
- Fairlead type: Roller
- Remote type: corded remote with 11.5' (3.5m) lead
- Mounting hole quantity: 4

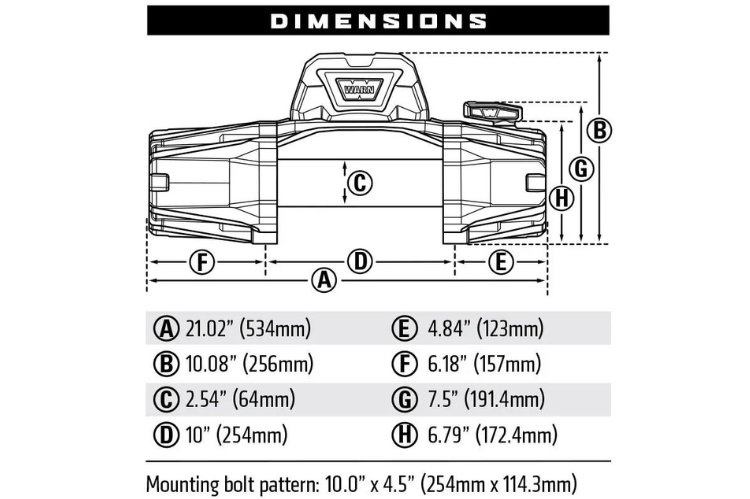

- Mounting pattern length: 10 Inch
- Mounting pattern width: 4-1/2 Inch
- Includes mounting hardware: Yes
- Color: Black
- Max line pull/ line speed: 10000 Pound / 5.2 ft per minute
- Max amp draw/ line pull: 358 Amps / 10000 Pound
- Drum material: Steel
Descriptions:
When it comes to determining the ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs, several factors come into play. Generally speaking, a winch's weight capacity should be at least 1.5 times the weight of the vehicle it will be used on. So, for a 1/2-ton pickup truck with a weight of approximately 4,500 pounds, a winch with a weight capacity of 7,000 pounds or higher would be suitable.
As for line speed, the ideal speed will depend on the specific needs of the user. A faster line speed may be preferable for those who need to make quick recoveries, while a slower line speed may be better for those who need more control when winching.
The VR EVO 10 winch, with its fast line speed and lower amp draw, is designed to be a hard-working standard-duty winch suitable for a variety of applications. Its weight capacity of 10,000 pounds makes it suitable for use on 1/2-ton pickups, Jeeps, and larger SUVs. The corded remote with an 11.5-foot lead provides the user with plenty of room to maneuver and operate the winch from a safe distance.
Overall, the VR EVO 10 winch appears to be a reliable and durable option for those in need of a standard-duty winch with a decent weight capacity and line speed, all at an affordable price.
